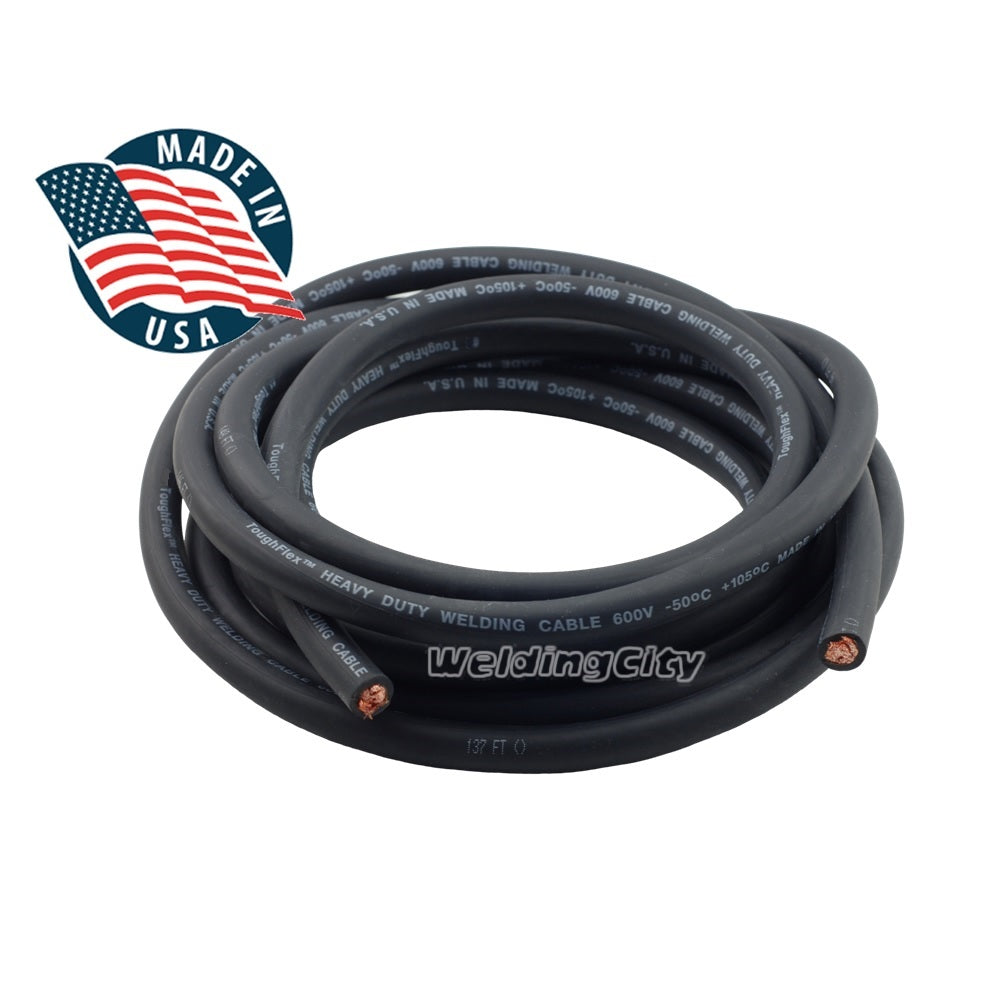

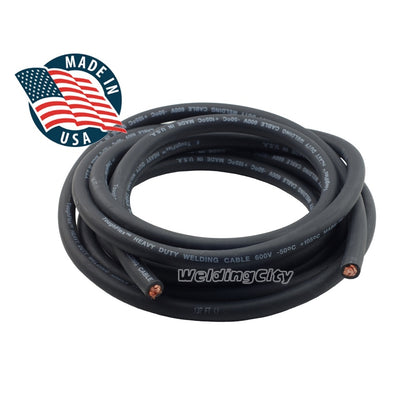

WeldingCity® 1-0-AWG Heavy Duty Welding Cable EPDM Rubber Jacketed Made in U.S.A.

WeldingCity® 1-0-AWG Heavy Duty Welding Cable EPDM Rubber Jacketed Made in U.S.A.

by WeldingCity
$52.99
$52.99
Sale Sold out

Delivery time

Use this text to share information about your product and policies with your customers.

Cable Length

View full details
    • USA-made heavy duty 1/0-AWG (0-Gauge) welding cable for use where maximum flexibility and resistance to cuts, tears, abrasion is required.

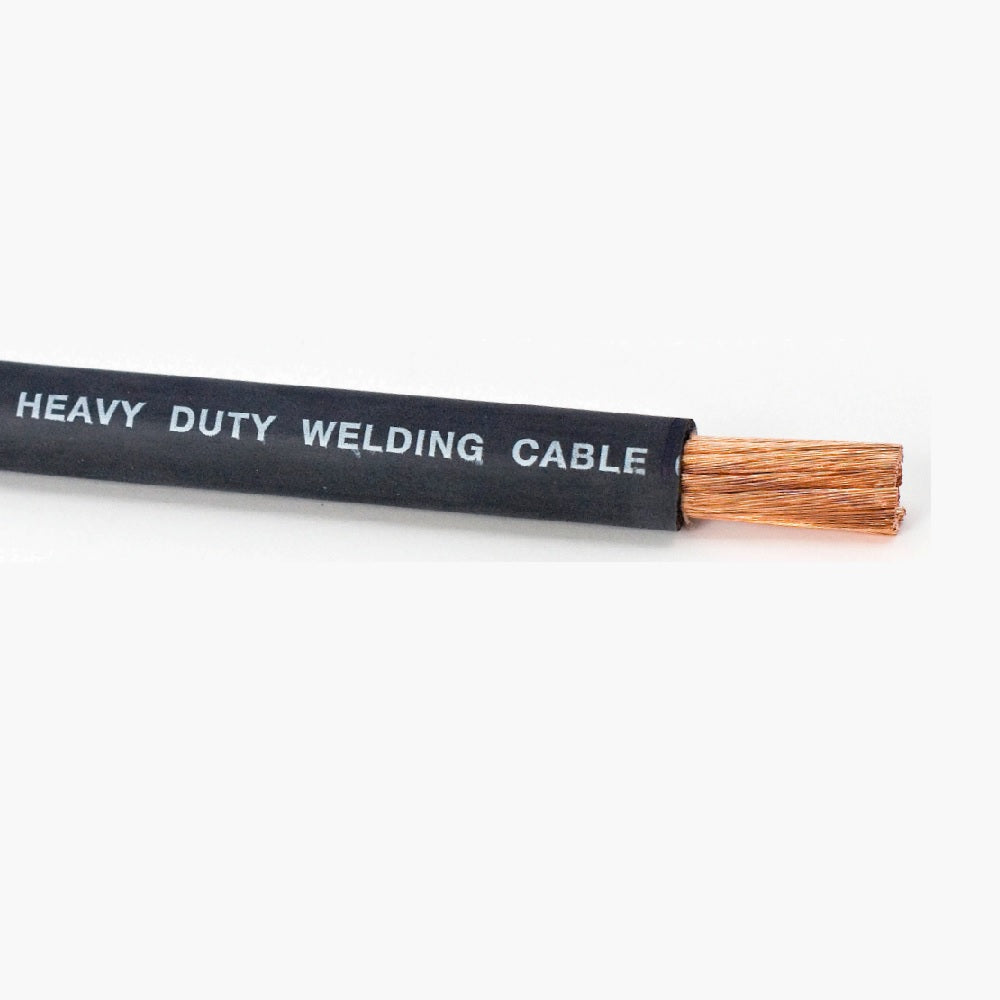

    • Highly flexible stranded No.30 bare copper conductor insulated with a high grade RoHS compliant EPDM (black). A paper separator is utilized to enhance stripability.
    • Maximum conductor operating temperature is 105°C in circuits not exceeding 600 Volts. Minimum temperature rating is -50°C.
    • Cable meets the UL VW-1 flame test outlined in UL1581. SAE J1127 stranding.
    • Resistant to chemicals, oils, and acids and is also weather, ozone and sunlight resistant.
    • Applications:
      • Secondary voltage resistance welding cable leads
      • Temporary power uses
      • National Electrical Code article 630 electric welders
      • Power supply applications not exceeding 600 volts AC
    • Priced for cable length 10-ft, 15-ft, 25-ft, 50-ft and 100-ft. Contact Us for customized length.
    • Brand   WeldingCity®
      Standards
      		   USA-made; No.30 copper conductor stranding (SAE J1127); high grade RoHS compliant EPDM; meets UL VW-1 flame test in UL1581
      Cable Gauge
      		   1/0-AWG
      Maximum Voltage   600V
      Operating Temperature   -50°C to 105°C
      Cable Length   10-ft/15-ft/25-ft/50-ft/100-ft and customized length
